Writing/Developing EXTOL TPMC Exit Point Program

Writing/Developing your first EXTOL TPMC Exit Point Program


EXTOL EDI Integrator supplies various trading partner message class (TPMC) exit points. CLICK HERE to see examples of these programs. If these programs are not sufficient for your needs then we need to start thinking about developing a new EXTOL TPMC Exit Point.

Background of EXTOL Exit Point Program

In the example below we will call an exit point program each time an inbound 850 is received from Lowes. The program would be executed after the records are written out.

Description from EXTOL Help Documentation
EXTOL EDI Integrator (EEI) allows user exits to be specified at the trading partner message class level and triggered by each document at the occurrence of any or all of 11 different events. The records are specified as various combinations of trading partner, group code, message id and message class, with the special value of *all permitted in any combination of these four fields. This allows "exception-based" specifications of the actions to be performed.

Create TPMC Exit Program Entry


Below, enter in a unique sequence number, Trading Partner code, Group Code, Message ID, Message class, and Msg Event.

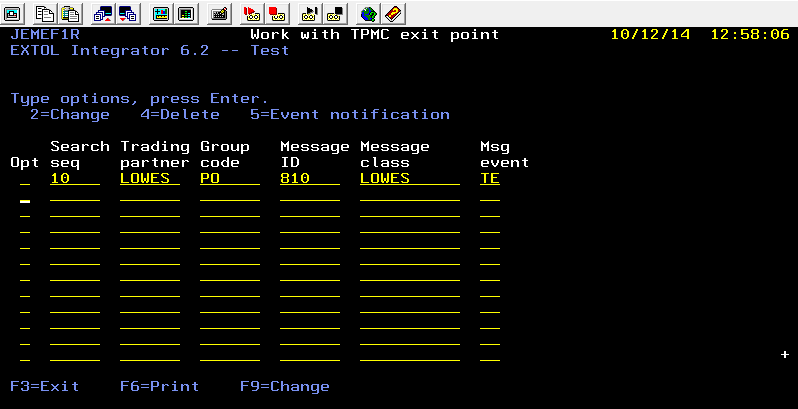

EXTOL EDI Integrator (EEI) EXTTOC Create TPMC entry

A code representing a processing event (for example, "Translation end") at which it is desired to execute a user-supplied program or command.

AL          Ack marked late/not late  VAL
AR          Acknowledgement received  VAL
AS          Acknowledgement sent      VAL
CA          Crt msg log - CRTAPPDTA   VAL
CU          Crt msg log - unwrap      VAL
EL          Envelope logs assigned    VAL
RD          Ready to delete           VAL
ST          Schedule for translate    VAL
SN          Sent/Send attempted       VAL
TE          Translation end           VAL
WR          Wrapped (ready to send)   VAL

Update TPMC Exit Point Program

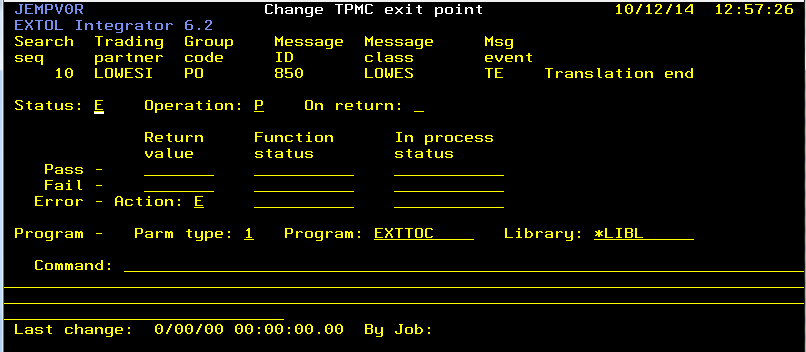

EXTOL EDI Integrator (EEI) EXTTOC Update entry

Enter the following fields

  • Status: E
  • Operation: P
  • Error-Action: E
  • Parm Type: 1
  • Program: user value
  • Library: user value

Sample DUMPEXIT RPG PGM


For programming examples, we recommend EXTSYS/QRPGSRC/DUMPEXIT. PGM: DUMPEXIT is the long parm list and supplies users with the most information needed.
All programming can begin on line 240. Below is the sample coding from PGM: DUMPEXIT

240.00      C           ICOUNT    IFLT 1
241.00       * Obtain limiting count for dump
242.00      C                     Z-ADD1         UDDLMT  30       dump
243.00      C           *NAMVAR   DEFN EXDMPLMT  UDDLMI  30
244.00      C                     IN   UDDLMI                 91
245.00      C  N91                Z-ADDUDDLMI    UDDLMT           dump
246.00      C                     MOVE '0'       *IN91
247.00      C                     END
248.00       *
249.00       *
